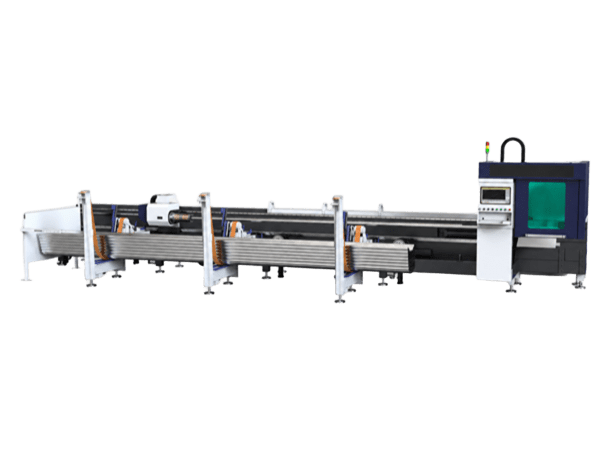

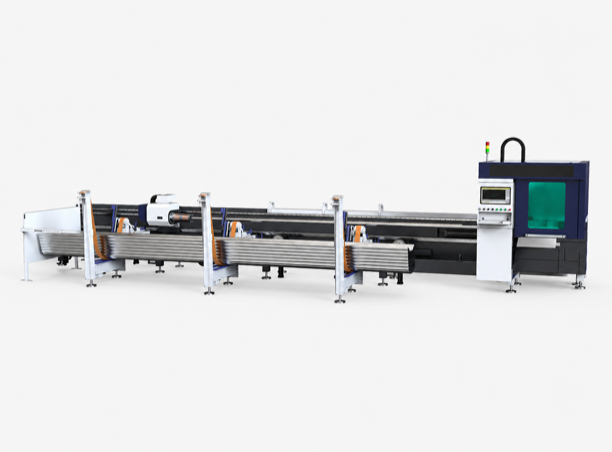

Prato Laser Fully Automatic Laser Tube Cutting Machine is designed for efficient metal tube processing, supporting automatic loading, precision chuck clamping and high-speed fiber laser cutting. It is suitable for round tubes, square tubes, rectangular tubes and shaped metal profiles, with optional zero-tail and bevel cutting configurations for different production needs.
ISO 9001 Certified
30-Day Delivery
2-Year WarrantyPrato Laser Fully Automatic Laser Tube Cutting Machine is designed for efficient and precise metal tube processing. With automatic loading, stable clamping, fiber laser cutting and optional zero-tail or bevel cutting configurations, it helps manufacturers improve production efficiency, reduce manual operation and achieve consistent cutting quality.
This series is suitable for cutting round tubes, square tubes, rectangular tubes and various metal profiles. Different chuck sizes and configurations are available to meet different tube diameters, production capacities and processing requirements.
Designed for automated tube processing, this machine combines efficient loading, stable clamping, precise cutting and flexible model options to meet different industrial production needs.
Supports automatic tube feeding and continuous processing, reducing manual operation and improving production efficiency.
Available with 120mm, 160mm and 240mm chuck configurations to meet different tube diameter requirements.
Equipped with precision chuck clamping for stable tube positioning and accurate cutting performance.
Delivers clean cutting edges, fast processing speed and consistent quality for metal tube fabrication.
Optional zero-tail series helps reduce material waste and improve tube utilization in batch production.
Optional five-axis bevel cutting supports angled cuts for welding preparation and complex tube structures.
| Item | Specification |
|---|---|
| Product Name | Fully Automatic Laser Tube Cutting Machine |
| Available Models | PLT-G120C / G160C / G240C / G120CL / G160CL / G120P / G120K / G160K / G240K |
| Series Type | Standard Series / Zero-Tail Series / Flat Push Series / Five-Axis Bevel Cutting Series |
| Tube Type | Round tube, square tube, rectangular tube, oval tube and shaped metal profiles |
| Round Tube Cutting Range | Φ10–120mm / Φ10–160mm / Φ10–240mm, depending on model |
| Square Tube Cutting Range | □10–120mm / □10–160mm / □10–240mm, depending on model |
| Standard Tube Length | 6000–6250mm |
| Y-Axis Travel | 7000mm |
| Loading Method | Fully automatic loading; flat push loading optional for PLT-G120P |
| Chuck Type | Precision pneumatic chuck / automatic chuck |
| Max. Acceleration | Up to 2.5G |
| Single Tube Max. Weight | 80kg for G120 reference; larger models subject to configuration |
| Tail Material Length | ≥40mm for standard models; zero-tail option available |
| Zero-Tail Models | PLT-G120CL / G160CL |
| Bevel Cutting Models | PLT-G120K / G160K / G240K |
| Optional Functions | Zero-tail cutting, five-axis bevel cutting, pneumatic receiving system |
| Laser Power | 1500W–6000W optional, depending on material and thickness |
| Suitable Materials | Carbon steel, stainless steel, galvanized steel, aluminum and other metal tubes |
| Cutting Thickness | Depends on laser power, material type and tube wall thickness |
| Machine Size | 8990×2798×2311mm for G120 reference |
| Power Supply | 3 Phase / 380V ±10% / 50Hz |
Prato Laser fully automatic laser tube cutting machine supports precise cutting of various metal tubes and profiles, including round tubes, square tubes, rectangular tubes, oval tubes and shaped profiles. Cutting thickness depends on laser power, material type and tube wall thickness.
For round, square and rectangular carbon steel tube cutting.
Clean and precise cutting for stainless steel tube applications.
Suitable for galvanized pipes used in construction and fabrication.
Supports aluminum tube cutting depending on power and configuration.
Accurate cutting, hole cutting and angle cutting for round pipes.
Stable processing for square tubes in furniture, frames and structures.
Suitable for rectangular tube cutting in machinery and steel structures.
Supports oval tubes, waist tubes and other customized metal profiles.
Prato Laser automatic tube laser cutting machines are widely used in industries that require accurate and efficient metal tube processing.
